■ About LOC Technology

• Lab-on-chip (LOC) technology which is incorporated in our Instrument focuses on the development of hybrid devices, which integrate fluidic and electronic components onto the same small board. They are devoted primarily to liquid sample testing and handling. Such devices reduce laboratory processes in a manner competitive to bench-top instruments. LOC technology emphasizes integration, programmability, increased sensitivity, minimal reagent consumption, sterilization and efficient sample detection and separation.

■ Instrument overview

• Lab-on-a-chip (LOC)-based water quality auto-analyzing equipment enabled to continuously measure 14 water quality items such as NH4+, NO2-, NO3-, PO43-, DOC, BOD, TN, TP, water temperature, pH, electric conductivity(EC), dissolved oxygen (DO), ORP, and turbidity.
• Using imbedded software algorithm, TN, TP, and BOD are calculated from other measured water quality data.

■ Adventages

• About 20% size compared to the existing measuring equipment
• D*H*W = 550 mm * 1050 mm * 550 mm

• Measurement interval of 5 min (25% of other companies’ instrument)
• Real-time CSOs and water treatment process control possible

• Consumption of 100 μl reagent per time
• 10% level of reagent consumption compared to other companies

• 0.2 kW power consumption per day (45% compared to other companies)
• Use of photovoltaic energy possible

• Monitoring and control via a smart device
• Anytime anywhere real-time measurement possible

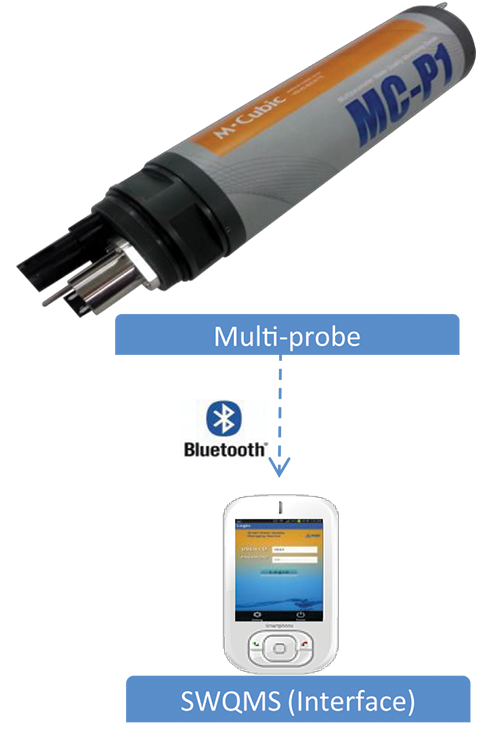

Smart Water Quality Monitering System

■ Outline

• Innovative measuring system to collect and transmit water quality measurement data in real-time through a mobile and a smart pad at the site.

■ Functions

• Navigation, Graph, Data storage, Data transfer, Data Extraction, Memo, etc.

■ Instruments

• Galaxy family, i-Phone family
• English/Korean version developed; Malayan version possible
